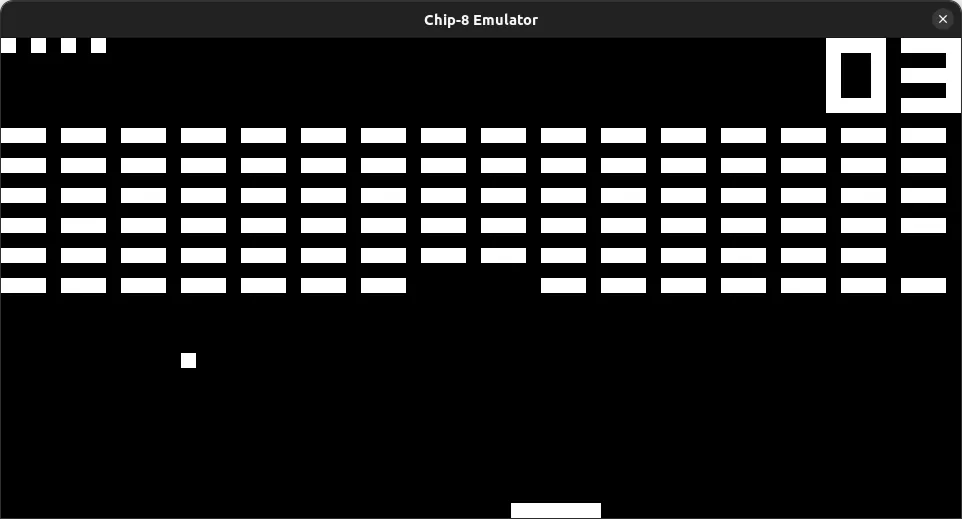

This is the second part of the series on building a Chip-8 emulator in Rust. In the previous post, Build a Chip-8 Emulator in Rust - Part 1 - Emulator Design, we explored the components of our emulator, defining data structures for registers, memory, display, and other essential parts. Now, we’ll delve into the core functionality of starting and running the emulator.
Initializing the Emulator
Let’s initialize the emulator by implementing a new function. When
initializing the emulator, all values are expected to be 0 except for the
program counter, which should start at 0x200 (remember, the first 512 bytes of
memory are reserved for the interpreter).
impl Emulator {
pub fn new() -> Self {
Self {
registers: [0; 16],
index: 0,
program_counter: 0x200,
memory: Memory::new(),
stack: Stack::new(),
delay_timer: Timer::new(),
sound_timer: Timer::new(),
keypad: Keypad::new(),
display: Display::new(),
}
}
}Initializing most components with zero values is straightforward. However, the memory requires additional setup, which we’ll explore next.
Initializing the Memory
Let’s start by creating an empty memory buffer:
impl Memory {
pub fn new() -> Self {
let mut storage = [0; MEMORY_SIZE];
Self { storage }
}
}Adding Font Sprites
As explained in part one of the series, the memory has first 512 bytes reserved
for the interpreter. In this reserved section, programs generally expect font
sprites for hexadecimal digits 0 through F at 0x000 address.
But, what is a sprite? and how is it stored in memory?
Chip-8 draws graphics on screen through the use of sprites. Each sprite consists of 8-bit bytes, where each bit corresponds to a horizontal pixel; sprites are between 1 and 15 bytes tall. Let’s visualize this.
Say you wanted to draw the digit 6 on the screen:
■■■■
■
■■■■
■ ■
■■■■You will create a sprite: 0xF0, 0x80, 0xF0, 0x90, 0xF0.
This sprite might not make much sense in it’s hexadecimal form, but let’s convert it to binary and look at it again:
0xF0 => 11110000
0x80 => 10000000
0xF0 => 11110000
0x90 => 10010000
0xF0 => 11110000From this representation we can understand how each bit represents a pixel on the display. So when the user program calls the draw command with this sprite, the display pixel is flipped if the bit is set in the sprite. This is how a sprite is rendered in Chip-8.
So now we understand what sprites are and how they work, we can add all the required sprites to our code:
const MEMORY_SIZE: usize = 0x1000; // 4096
const FONT_SPRITES: [u8; 5 * 16] = [
0xF0, 0x90, 0x90, 0x90, 0xF0, // 0
0x20, 0x60, 0x20, 0x20, 0x70, // 1
0xF0, 0x10, 0xF0, 0x80, 0xF0, // 2
0xF0, 0x10, 0xF0, 0x10, 0xF0, // 3
0x90, 0x90, 0xF0, 0x10, 0x10, // 4
0xF0, 0x80, 0xF0, 0x10, 0xF0, // 5
0xF0, 0x80, 0xF0, 0x90, 0xF0, // 6
0xF0, 0x10, 0x20, 0x40, 0x40, // 7
0xF0, 0x90, 0xF0, 0x90, 0xF0, // 8
0xF0, 0x90, 0xF0, 0x10, 0xF0, // 9
0xF0, 0x90, 0xF0, 0x90, 0x90, // A
0xE0, 0x90, 0xE0, 0x90, 0xE0, // B
0xF0, 0x80, 0x80, 0x80, 0xF0, // c
0xE0, 0x90, 0x90, 0x90, 0xE0, // D
0xF0, 0x80, 0xF0, 0x80, 0xF0, // E
0xF0, 0x80, 0xF0, 0x80, 0x80, // F
];Let’s put these sprites at 0x000 in the memory.
impl Memory {
pub fn new() -> Self {
let mut storage = [0; MEMORY_SIZE];
storage[0x000..FONT_SPRITES.len()].copy_from_slice(&FONT_SPRITES);
Self { storage }
}
}Loading the ROM
Another thing the memory is initialized with is the user program, often referred
to as a ROM. This is stored at the address 0x200. We can take the ROM as input
during emulator creation.
Let’s add this to our code:
impl Memory {
pub fn new(rom: &[u8]) -> Self {
let mut storage = [0; MEMORY_SIZE];
storage[0x000..FONT_SPRITES.len()].copy_from_slice(&FONT_SPRITES);
storage[0x200..(0x200 + rom.len())].copy_from_slice(rom);
Self { storage }
}
}We’ll have take the rom as an input for our emulator too and pass it to the memory.
impl Emulator {
pub fn new(rom: &[u8]) -> Self {
Self {
registers: [0; 16],
index: 0,
program_counter: 0x200,
memory: Memory::new(rom),
stack: Stack::new(),
delay_timer: Timer::new(),
sound_timer: Timer::new(),
keypad: Keypad::new(),
display: Display::new(),
}
}
}Memory is now initialized. The other components can all be initialized with zero values, without needing any additional logic. Implementing those is left as an exercise to the reader.
Emulation Loop
Let’s start with the emulation loop, the code that will drive the emulator.
Starting the Emulator
We’ll create a new emulator by first loading a Chip-8 ROM. We can take the path of the ROM file as a command-line argument for the program and pass it to out emulator.
use std::env::args;
use std::fs::read;
use crate::emulator::Emulator;
fn main() {
let rom_path = args().skip(1).next().expect("rom path");
let rom = read(rom_path).expect("rom file");
let mut emulator = Emulator::new(&rom);
}Running the Emulation Cycle
The emulation cycle needs 2 timed components, one is the CPU and second is the timers. The timers count down at a rate of 60Hz, ie, 60 times a second. The CPU is not as straightforward, as the execution speed of a Chip-8 CPU is not strictly documented and varies from implementation to implementation, varying from 500Hz to 1MHz. For our implementation, we can run the emulator at an approximate speed of 540 instructions per second (540 Hz).
To implement this, we can start with a loop that runs 60 times a second. We can
approximately emulate this by running a sleep for 1_000_000_000/60 nanoseconds
in every iteration.
use std::env::args;
use std::fs::read;
use std::thread::sleep;
use std::time::Duration;
use crate::emulator::Emulator;
fn main() {
let rom_path = std::env::args().skip(1).next().expect("rom path");
let rom = std::fs::read(rom_path).expect("open rom file");
let mut emulator = Emulator::new(&rom);
loop {
sleep(Duration::new(0, 1_000_000_000u32 / 60));
}
}Executing CPU Instructions
Since we have to run 540 CPU instructions every second. If we execute 9 instructions in every iteration, we can achieve approximately 9x60=540 instructions per second.
fn main() {
let rom_path = std::env::args().skip(1).next().expect("rom path");
let rom = std::fs::read(rom_path).expect("open rom file");
let mut emulator = Emulator::new(&rom);
loop {
for _ in 0..9 {
emulator.run_cycle();
}
sleep(Duration::new(0, 1_000_000_000u32 / 60));
}
}For now we’ll just implement an empty run_cycle associated function for
Emulator, which we will populate with logic later.
impl Emulator {
// ... other code ...
pub fn run_cycle(&mut self) {}
}Decrementing Timers
We also have to decrement the sound and delay timers at 60Hz, ie, once per iteration of this loop.
fn main() {
let rom_path = std::env::args().skip(1).next().expect("rom path");
let rom = std::fs::read(rom_path).expect("open rom file");
let mut emulator = Emulator::new(&rom);
loop {
for _ in 0..9 {
emulator.run_cycle();
}
emulator.decrement_timers();
sleep(Duration::new(0, 1_000_000_000u32 / 60));
}
}We will implement this function in the Emulator struct:
impl Emulator {
// ... other code ...
pub fn decrement_timers(&mut self) {
self.sound_timer.decrement();
self.delay_timer.decrement();
}
}And also implement the decrement function for the Timer struct:
impl Timer {
// ... other code ...
pub fn decrement(&mut self) {
if self.value > 0 {
self.value -= 1;
}
}
}Wrapping Up
In this part of the series, we laid the groundwork for our Chip-8 emulator by initializing its core components and setting up the emulation loop. We implemented loading font sprites into memory, handling ROM loading, and managing the emulation cycle, ensuring the CPU runs at an appropriate speed while maintaining timings for the delay and sound timers.
In the next part, we’ll dive deeper into the execution of Chip-8 instructions, decoding and handling various opcodes, and integrating SDL2 to manage graphics, input, and sound. With these additions, we’ll bring our emulator closer to running actual Chip-8 programs and interacting with users. Stay tuned!
